網站首頁 > BOSERL減速機 > 斜齒輪蝸輪蝸桿減速機 > SF系列齒輪減速馬達

SF38減速機詳細信息

prevnext

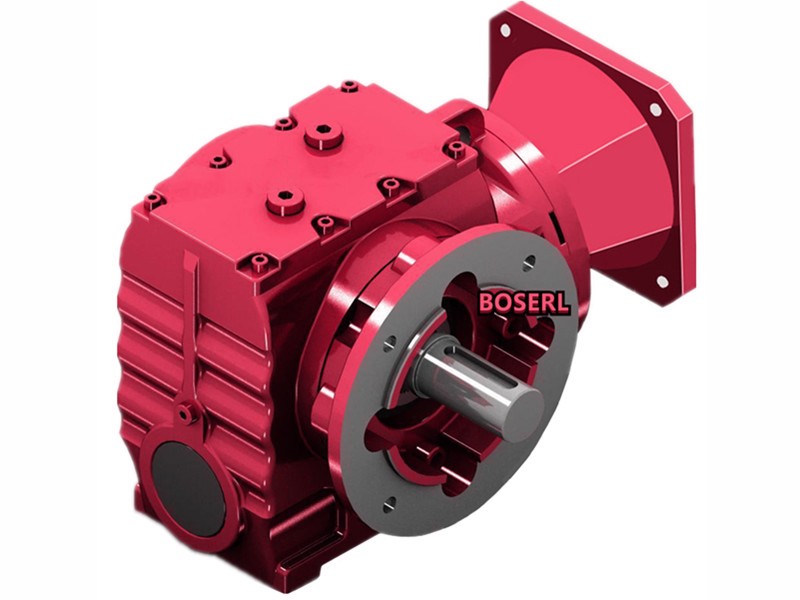

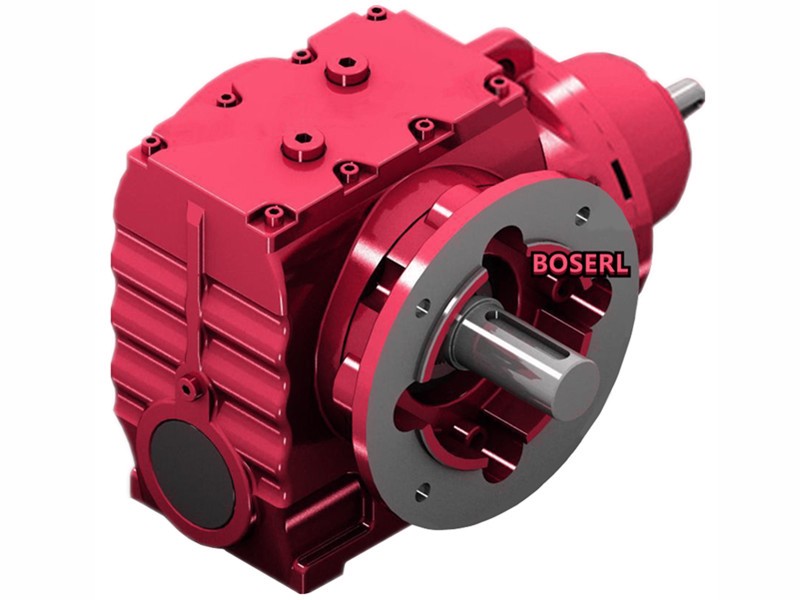

SF38減速機

訂購熱線：13360667204
  1. 詳細信息

SF38減速機傳動比計算：齒輪減速馬達

上料機參數：齒輪直徑70，拖動400kg，一分鐘運行105米

105米÷（0.07齒輪直徑X3.14）=477.71轉每分鐘

400kg換算成扭矩=392N.m

392N.m×0.035齒輪半徑=13.72N.m

電機轉數1400÷輸出轉數477.71=2.93比

13.72N.m輸出扭矩÷2.93比=4.683N.m電機扭矩

46.83N.m電機扭矩換算成功率0.74KW以上

對應的SF38減速機選型參數：

型號：SF38-BEJ0.75KW

減速比：6.8

輸出轉數：211轉每分鐘

輸出扭矩：31N.m

安全系數：1.4

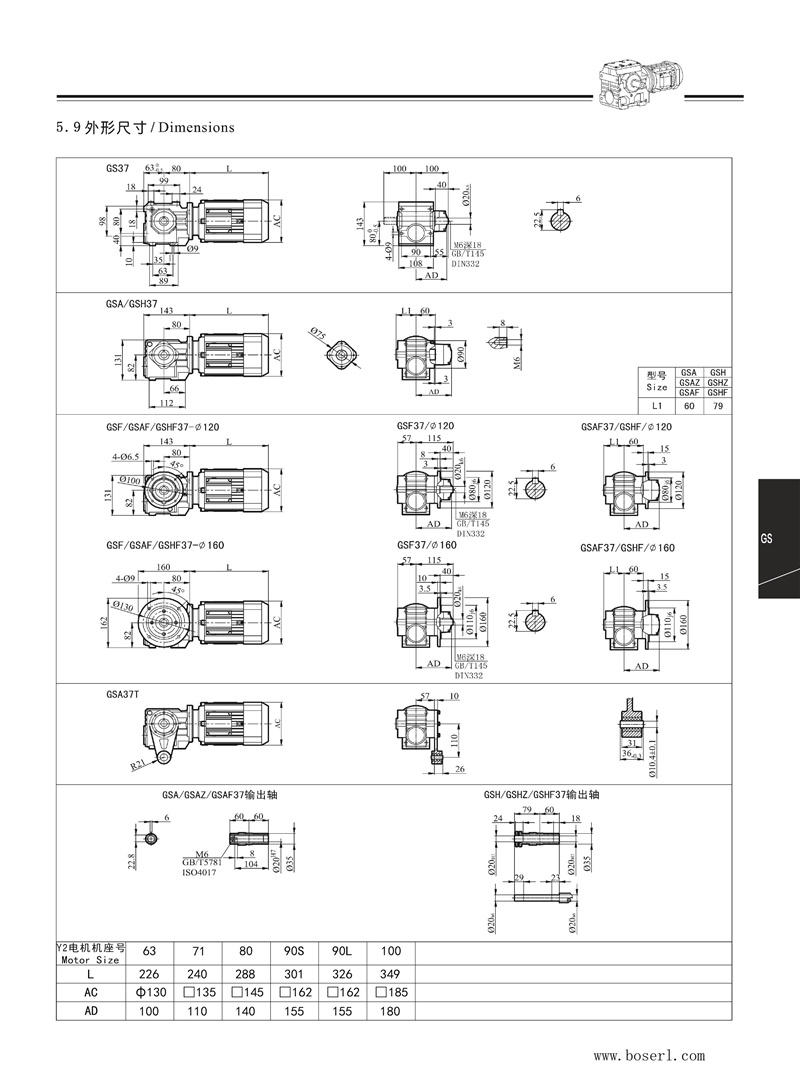

SF38減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機蝸輪蝸桿減速機


SF38斜齒輪渦輪渦桿減速機型號：



SF38系列減速機參數大全：自鎖減速機

SF38減速機配0.12KW電機參數

型號功率轉數扭矩安全系數
S37Y0.12KW0.12KW8.80rpm74N.m1.25
S37Y0.12KW0.12KW9.60rpm68N.m1.35
S37Y0.12KW0.12KW11.0rpm60N.m1.55
S37Y0.12KW0.12KW13.0rpm52N.m1.70
S37Y0.12KW0.12KW14.0rpm49N.m1.75
S37Y0.12KW0.12KW16.0rpm44N.m1.95
S37Y0.12KW0.12KW17.0rpm41N.m2.10
S37Y0.12KW0.12KW19.0rpm37N.m2.30
S37Y0.12KW0.12KW22.0rpm35N.m2.30
S37Y0.12KW0.12KW25.0rpm33N.m2.50
S37Y0.12KW0.12KW27.0rpm33N.m2.50
S37Y0.12KW0.12KW32.0rpm28N.m2.90
S37Y0.12KW0.12KW37.0rpm24N.m3.20
S37Y0.12KW0.12KW39.0rpm23N.m3.40
S37Y0.12KW0.12KW45.0rpm20N.m3.70
S37Y0.12KW0.12KW48.0rpm19N.m3.90
S37Y0.12KW0.12KW54.0rpm17N.m4.40
S37Y0.12KW0.12KW61.0rpm15N.m4.80
S37Y0.12KW0.12KW69.0rpm14N.m3.60
S37Y0.12KW0.12KW76.0rpm13N.m3.90
S37Y0.12KW0.12KW89.0rpm11N.m4.40

SF38減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
S37Y0.18KW0.18KW8.40rpm115N.m0.80
S37Y0.18KW0.18KW9.10rpm107N.m0.85
S37Y0.18KW0.18KW11.0rpm93N.m1.00
S37Y0.18KW0.18KW12.0rpm82N.m1.10
S37Y0.18KW0.18KW13.0rpm77N.m1.15
S37Y0.18KW0.18KW15.0rpm68N.m1.25
S37Y0.18KW0.18KW16.0rpm64N.m1.30
S37Y0.18KW0.18KW18.0rpm58N.m1.45
S37Y0.18KW0.18KW21.0rpm55N.m1.45
S37Y0.18KW0.18KW24.0rpm52N.m1.60
S37Y0.18KW0.18KW26.0rpm51N.m1.60
S37Y0.18KW0.18KW30.0rpm44N.m1.85
S37Y0.18KW0.18KW35.0rpm38N.m2.10
S37Y0.18KW0.18KW38.0rpm36N.m2.20
S37Y0.18KW0.18KW43.0rpm32N.m2.40
S37Y0.18KW0.18KW46.0rpm30N.m2.50
S37Y0.18KW0.18KW52.0rpm26N.m2.80
S37Y0.18KW0.18KW59.0rpm24N.m3.10
S37Y0.18KW0.18KW66.0rpm22N.m2.30
S37Y0.18KW0.18KW72.0rpm21N.m2.50
S37Y0.18KW0.18KW85.0rpm18N.m2.80
S37Y0.18KW0.18KW99.0rpm15N.m3.20
S37Y0.18KW0.18KW106rpm14N.m3.40
S37Y0.18KW0.18KW121rpm13N.m3.80
S37Y0.18KW0.18KW129rpm12N.m4.00

SF38減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
S37Y0.25KW0.25KW13.0rpm108N.m0.80
S37Y0.25KW0.25KW15.0rpm96N.m0.90
S37Y0.25KW0.25KW16.0rpm91N.m0.95
S37Y0.25KW0.25KW18.0rpm81N.m1.05
S37Y0.25KW0.25KW21.0rpm73N.m1.10
S37Y0.25KW0.25KW23.0rpm78N.m1.05
S37Y0.25KW0.25KW25.0rpm72N.m1.15
S37Y0.25KW0.25KW30.0rpm62N.m1.30
S37Y0.25KW0.25KW35.0rpm54N.m1.45
S37Y0.25KW0.25KW37.0rpm51N.m1.55
S37Y0.25KW0.25KW42.0rpm45N.m1.70
S37Y0.25KW0.25KW45.0rpm42N.m1.80
S37Y0.25KW0.25KW51.0rpm37N.m2.00
S37Y0.25KW0.25KW58.0rpm33N.m2.20
S37Y0.25KW0.25KW65.0rpm32N.m1.65
S37Y0.25KW0.25KW71.0rpm29N.m1.80
S37Y0.25KW0.25KW84.0rpm25N.m2.00
S37Y0.25KW0.25KW97.0rpm22N.m2.30
S37Y0.25KW0.25KW104rpm20N.m2.40
S37Y0.25KW0.25KW119rpm18N.m2.70
S37Y0.25KW0.25KW127rpm17N.m2.80
S37Y0.25KW0.25KW144rpm15N.m3.10
S37Y0.25KW0.25KW162rpm13N.m3.40
S37Y0.25KW0.25KW191rpm11N.m3.80

SF38減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
S37Y0.37KW0.37KW22.0rpm103N.m0.80
S37Y0.37KW0.37KW27.0rpm101N.m0.80
S37Y0.37KW0.37KW32.0rpm87N.m0.95
S37Y0.37KW0.37KW37.0rpm76N.m1.05
S37Y0.37KW0.37KW39.0rpm71N.m1.10
S37Y0.37KW0.37KW45.0rpm62N.m1.20
S37Y0.37KW0.37KW48.0rpm59N.m1.30
S37Y0.37KW0.37KW54.0rpm52N.m1.40
S37Y0.37KW0.37KW61.0rpm47N.m1.55
S37Y0.37KW0.37KW69.0rpm44N.m1.20
S37Y0.37KW0.37KW76.0rpm41N.m1.30
S37Y0.37KW0.37KW89.0rpm35N.m1.45
S37Y0.37KW0.37KW103rpm30N.m1.60
S37Y0.37KW0.37KW111rpm28N.m1.70
S37Y0.37KW0.37KW126rpm25N.m1.95
S37Y0.37KW0.37KW135rpm23N.m2.00
S37Y0.37KW0.37KW153rpm21N.m2.20
S37Y0.37KW0.37KW172rpm18N.m2.40
S37Y0.37KW0.37KW203rpm16N.m2.70

SF38減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
S37Y0.55KW0.55KW45.0rpm93N.m0.80
S37Y0.55KW0.55KW48.0rpm87N.m0.85
S37Y0.55KW0.55KW54.0rpm78N.m0.95
S37Y0.55KW0.55KW61.0rpm69N.m1.05
S37Y0.55KW0.55KW89.0rpm52N.m0.95
S37Y0.55KW0.55KW103rpm45N.m1.10
S37Y0.55KW0.55KW72.0rpm60N.m1.20
S37Y0.55KW0.55KW111rpm42N.m1.15
S37Y0.55KW0.55KW126rpm37N.m1.30
S37Y0.55KW0.55KW135rpm35N.m1.35
S37Y0.55KW0.55KW153rpm31N.m1.50
S37Y0.55KW0.55KW172rpm27N.m1.65
S37Y0.55KW0.55KW203rpm23N.m1.85

SF38減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
S37Y0.75KW0.75KW75.0rpm78N.m0.90
S37Y0.75KW0.75KW115rpm55N.m0.85
S37Y0.75KW0.75KW132rpm48N.m1.00
S37Y0.75KW0.75KW140rpm46N.m1.05
S37Y0.75KW0.75KW159rpm40N.m1.15
S37Y0.75KW0.75KW179rpm36N.m1.25
S37Y0.75KW0.75KW211rpm31N.m1.40

SF38減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
S37Y1.1KW1.1KW178rpm53N.m0.85
S37Y1.1KW1.1KW209rpm45N.m0.95
S37Y1.1KW1.1KW214rpm44N.m0.95
S37Y1.1KW1.1KW230rpm41N.m0.95
S37Y1.1KW1.1KW263rpm36N.m1.10
S37Y1.1KW1.1KW281rpm34N.m1.10
S37Y1.1KW1.1KW318rpm30N.m1.20
S37Y1.1KW1.1KW359rpm27N.m1.30
S37Y1.1KW1.1KW422rpm23N.m1.25

SF38減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
S37Y1.5KW1.5KW314rpm42N.m0.85
S37Y1.5KW1.5KW354rpm37N.m0.95
S37Y1.5KW1.5KW416rpm32N.m0.90

SF38減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：S38減速機

關鍵詞:GSF系列減速機配電機一體式_蝸輪蝸桿減速機制造廠家_伺服電機蝸輪蝸桿減速機_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號：SF38減速機,SF48減速機,SF58減速機,SF68減速機,SF78減速機,SF88減速機,SF98齒輪減速馬達

SF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   SF38減速機 SF37斜齒輪渦輪渦桿減速機 SF37系列減速機 SF37減速機傳動比 SF37減速機選型參數 SF37減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF38減速機CAD三維圖紙下載 點擊下載
SF38減速機選型參數下載 點擊下載
